6217_PHOTOMULTIPLIER_PREAMP

Published:2009/7/21 6:27:00 Author:Jessie | From:SeekIC

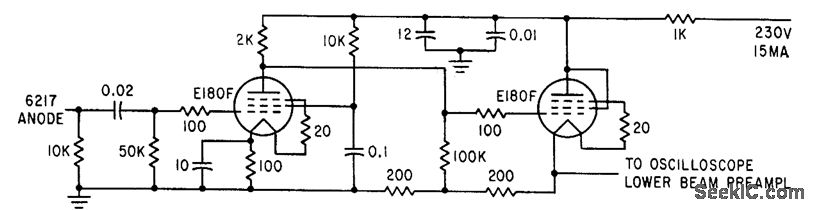

Used between photomultiplier and dual-beam oscilloscope to amplify signal pulse corresponding to transmitted laser signal in optical ranging system. Distance between transmitted and received pulses on cro corresponds to range. -M. L. Stitch, E. J. Woodbury and J. H. Morse, Optical Ranging System Uses Laser Transmitter, Electronics, 34:16, p 51-53.
