60_MHz_NARROW_BAND

Published:2009/6/25 22:30:00 Author:May | From:SeekIC

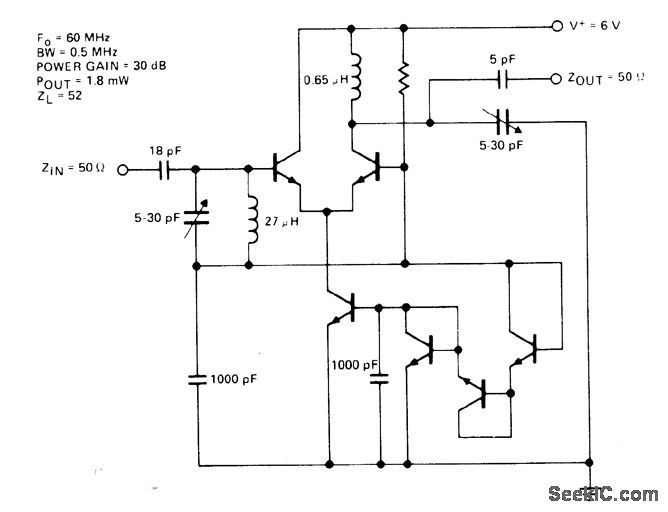

Signetics NE510/511 transistor array provides bandwidth of 0.5 MHz for 3dB down and noise figure of 7 dB for power gain of 30dB，Maximum output swing across 50 ohms is 300 mVRMS. Circuit is easily tuned.- Signetics Analog Data Manual. Signetics, Sunnyvale, CA,1977, p 749.
