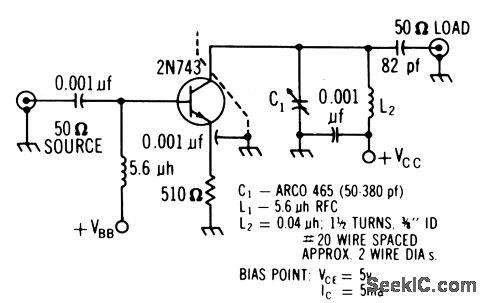

60_MC_I_F_WITH_2N743

Published:2009/7/16 2:58:00 Author:Jessie | From:SeekIC

Silicon epitaxial transistor has unconditional stability at this frequency, simplifying alignment. Gains up to 16 db per stage are possible with conjugate match at output. Noise figure is good.-Texas Instruments Inc., Solid-State Communications, McGraw-Hill, N.Y., 1966, p 311.
