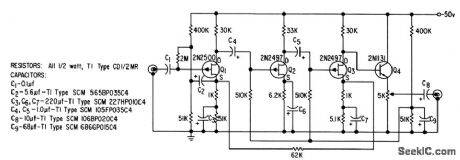

60_DB_LOW_NOISE_FET_AMPLIFIER

Published:2009/7/14 22:52:00 Author:Jessie | From:SeekIC

Gives maximum voltage gain of 60 db, constant within 0.5 db from -55 to ＋125℃ with built-in gain adjustment. Has good low-frequency response, along with extremely low noise, as little as 5 db at 10 cps. Used with low-level transducers, null detectors, recorders, oscilloscopes, and medical research equipment.-Texas Instruments Inc., Solid-State Communications, McGraw-Hill, N.Y., 1966, p 293.
