60_CPS_BANDSTOP_AMPLIFIER

Published:2009/7/10 5:05:00 Author:May | From:SeekIC

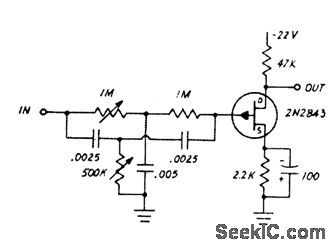

With fet as output buffer to give near-infinite load impedance, twin,T notch filter gives up to 50 db attenuafion at notch frequency.-FET's and RC Networks (Siliconix ad), Electronics, 39:4, p 71.
