5 Watt UHF TV Linear amplifier

Published:2012/9/12 21:17:00 Author:Ecco | Keyword: 5 Watt , UHF , TV Linear amplifier | From:SeekIC

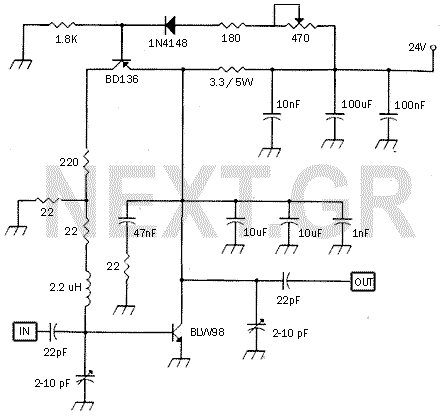

This small circuit is a Linear amplifier for driving small UHF TV transmitters. Its gain is 7dB and can amplify a signal between 450-800 MHz. You can drive the circuit with 1 to 1,5 Watts signal. Better use double layer PCB with the second layer connected to earth. Use a stabilized power supply 25 volts and at least 5Amps. Source: NEXT.GR
