5_W_WITH_OPAMP

Published:2009/6/29 2:54:00 Author:May | From:SeekIC

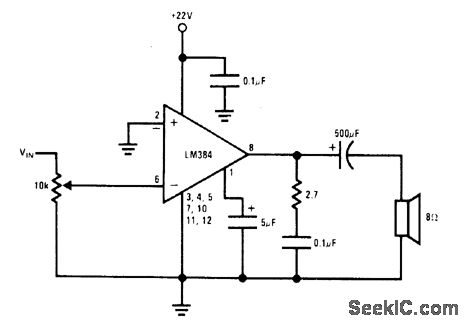

Simple circuit including volume control has low harmonic distortion.Higher allowable operating voltage of LM384 opamp gives higher output power, but heatsink is required.- Audio Handbook, National Semiconductor, Santa Clara, CA, 1977, p 4-28-4-29.
