5_W_150_MHz_TMOS_FET_amplifier

Published:2009/7/23 23:00:00 Author:Jessie | From:SeekIC

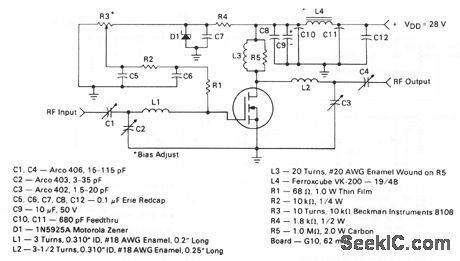

This circuit uses an MRF134, has a gain of 14dB, and has a drain efficiency of 55%. The output amplitude can be adjusted by R3.
