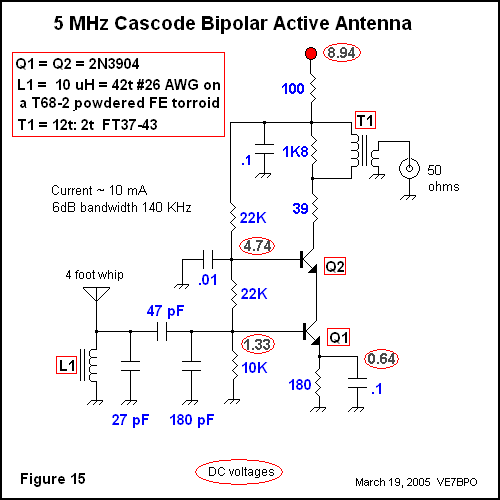

5 MHz WWV Cascode Bipolar Amplifier

Published:2012/12/12 21:13:00 Author:muriel | Keyword: 5 MHz , WWV Cascode, Bipolar Amplifier | From:SeekIC

Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Amplifier_Circuit/5_MHz_WWV_Cascode_Bipolar_Amplifier.html

Print this Page | Comments | Reading(3)
