58_watt_AF_power_amplifier_for_automotive_applications

Published:2009/7/20 5:20:00 Author:Jessie | From:SeekIC

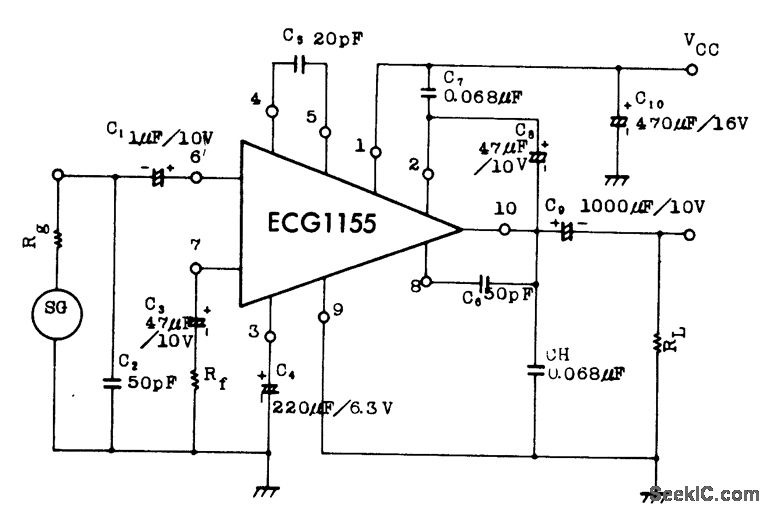

5.8-watt AF power amplifier for automotive applications. This circuit is ideal for car stereo or car radio outputs. In addition it can be employed for a CB modulator circuit. Recommended supply voltage is 13.2 volts. Input resistance is 40K. Voltage gain ranges between 52 and 58 dB (courtesy GTE Sylvania Incorporated).
