55_MC_I_F

Published:2009/7/16 2:52:00 Author:Jessie | From:SeekIC

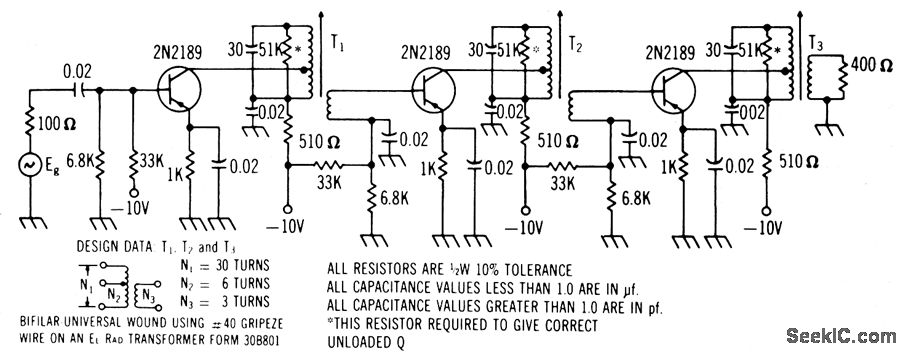

Three germanium transistors give power gain of 62 db with noise figure of only 4 db for bandwidth of 0.18 Mc.-Texas Instruments Inc., Solid-State Communications, McGraw-Hill, N. Y., 1966. p 307.
