51_DB_POWER_GAIN_FOR_AUTOPILOT

Published:2009/7/15 20:06:00 Author:Jessie | From:SeekIC

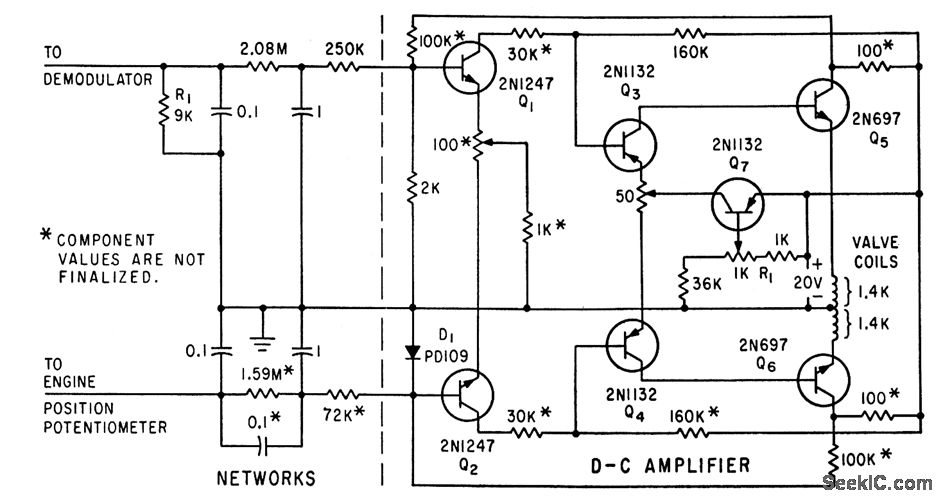

Two differential stages,Q1-Q2 and Q3-Q4,drive two emitter-followers Q5 and Q6 which in turn drive valve coils in pitch and yaw channels of autopilot.-J. H. Porter. Miniaturized. Autopilot System for Missiles.Electronics.33:43,p60-64
