50_MHz_POWER

Published:2009/6/25 21:49:00 Author:May | From:SeekIC

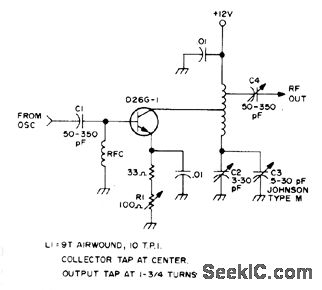

Developed for use with 50 MHz microtransistor crystal oscillator,using additional GE microtransistor for boosting RF output to about 75 mW，Article covers construction with microcomponents and gives other microtransistor circuits for low-power amateur tadiouse and possible bugging applications，-B.Hoisington、Introduction to″Microtransistors,″73 Magazit， Oct.1974,p 24-30.
