50KHZ Broadband Amplifier Circuit

Published:2011/7/13 6:17:00 Author:Sue | Keyword: Broadband, Amplifier | From:SeekIC

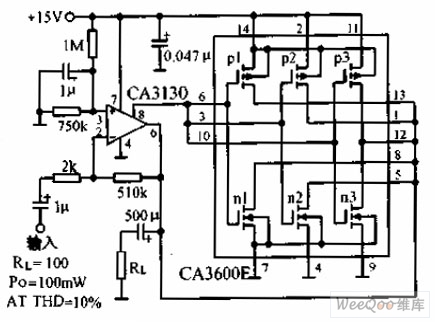

The amplifier with a brand width of 50KHz put CA3600 transistor array paralleling output circuit on the operational amplifier CA3130's output stage. Then the current control ability can improve 2.5 times. The closed-loop gain is 48dB and the brand width is 50KHz.
