500_MHz_100_W_push_pull_amplifier

Published:2009/7/24 3:22:00 Author:Jessie | From:SeekIC

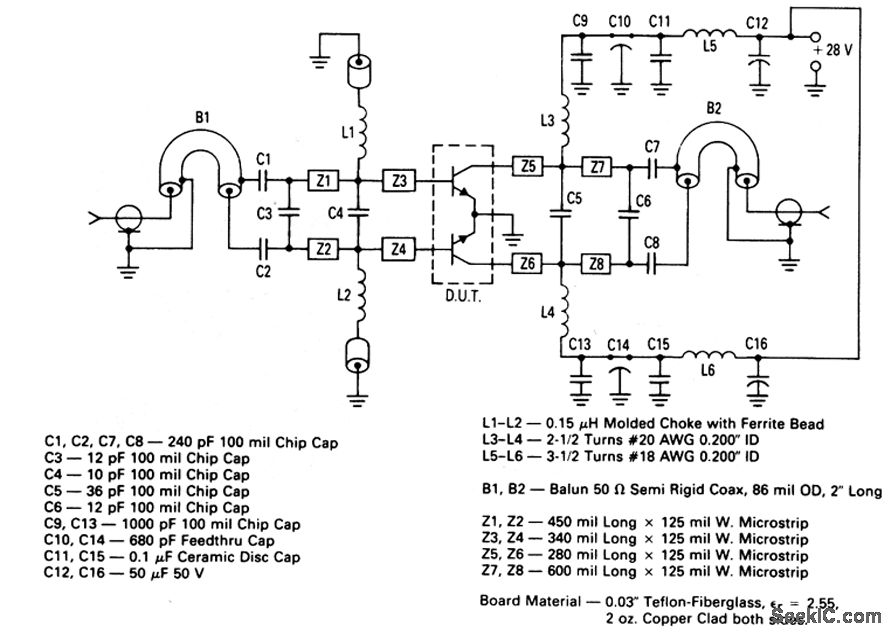

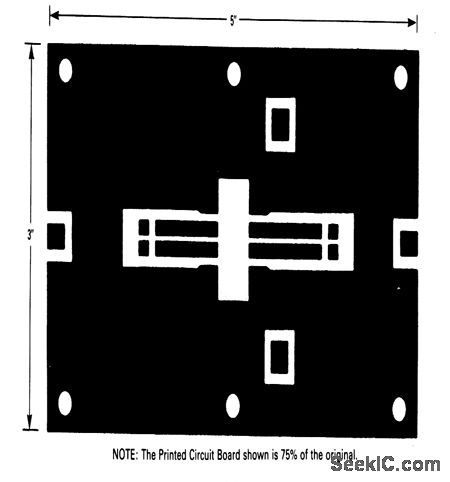

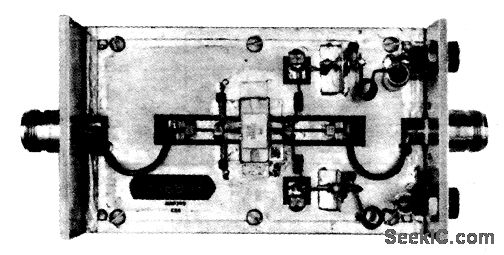

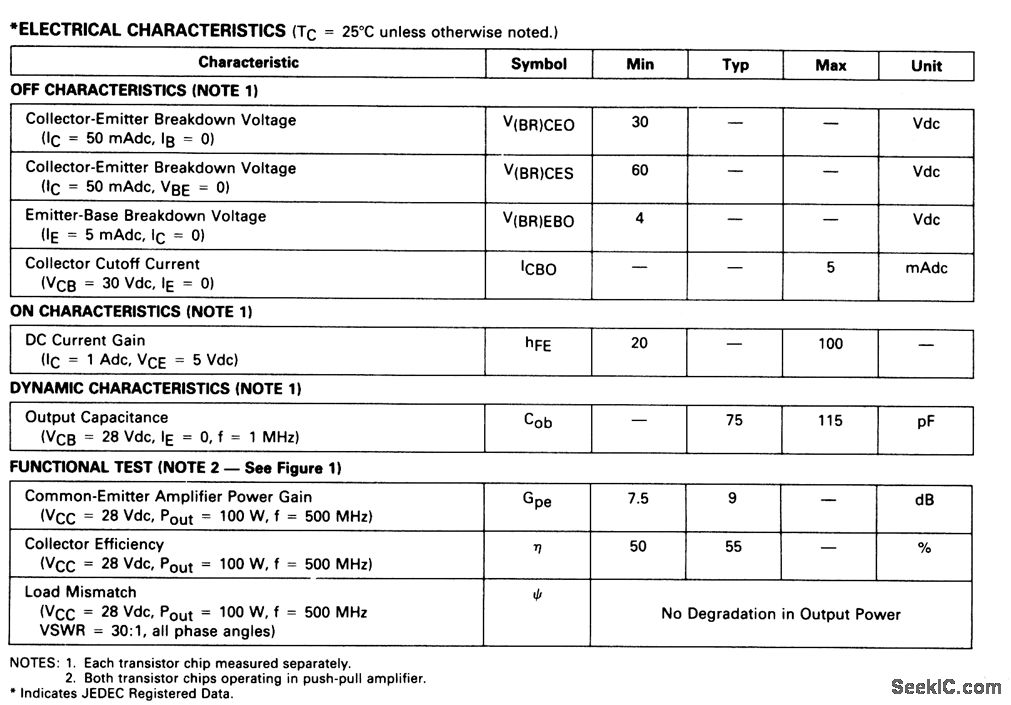

The electrical characteristics for the 2N6986(push-pull transistor)shown in this circuit are gilven in Fig．2-42B Figures 2-42C and 2-42D show the photomaster, and parts location, respectively. Those not familiar with microstrip techniques（for Z1 through Z8）should read the many Motorola publications, such as AN548A and AN555．
