500_KC_SCHMITT_TRIGGER

Published:2009/7/23 21:29:00 Author:Jessie | From:SeekIC

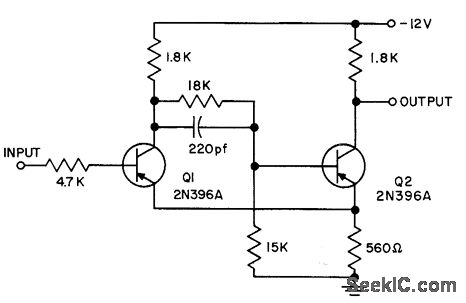

Used for wave form restoration, signal level shifting, squaring, and d-c level detection. Q1 conducts if input is more negative than -5 v. Q2 conducts when input is more positive than -2 v. Operating range is -55 to 71℃.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 200.
