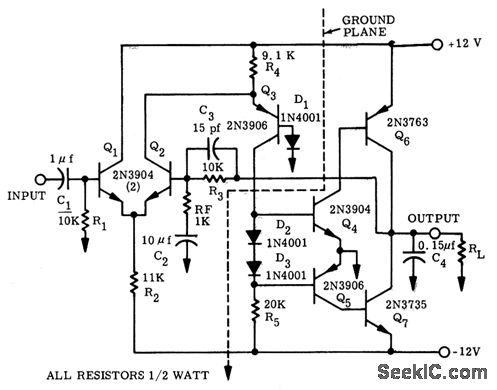

4_W_WIDE_BAND_AMPLIFIER

Published:2009/7/13 4:20:00 Author:May | From:SeekIC

Uses complementary transistors for operation up to 100 kc with low distortion. Output is class B.All leads should be kept shott, to minimize tendency to oscillate.-N. Freyling, A 4-Watt Wide-Bond Solid-State Amplifier, Motorola Application Note AN-209, Mar.1966.
