4Watt UHF TV linear amplifier

Published:2012/9/12 21:17:00 Author:Ecco | Keyword: 4Watt , UHF TV , linear amplifier | From:SeekIC

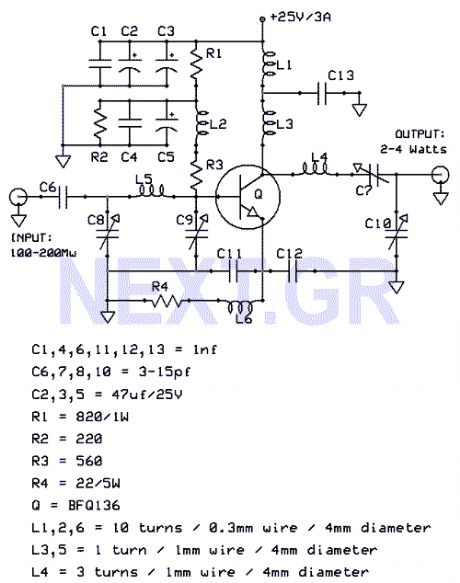

That Circuit is a UHF TV linear amplifier for small TV transmitters with output aroun 100-200mW. The transistor BGQ136 comes with SOT-122 case has gain of 13dB at 800MHz. So with input 100mW you get 2W output and for 200mW you get 4W. Source: NEXT.GR
