4OO_CPS_SUMMING_AND_POWER_AMPLIFIER

Published:2009/7/14 20:58:00 Author:May | From:SeekIC

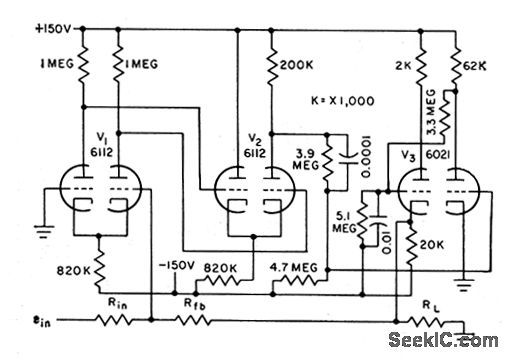

Used in either 60 or 400-cps control systems in which several signals must be summed and amplified in precise manner. Also used for broadband equalization when load impedance is below 25,000 ohms and phase lag must be minimum. Phase shift is less than 5° from d-c to 400 cps. Open-loop gain is above 5,000.-L. S. Klivans, D-C Amplifiers for Control Systems, Electronics, 31:47, p 96-100.
