47_MC_DRIVER_AND_AMPLIFIER

Published:2009/7/10 5:32:00 Author:May | From:SeekIC

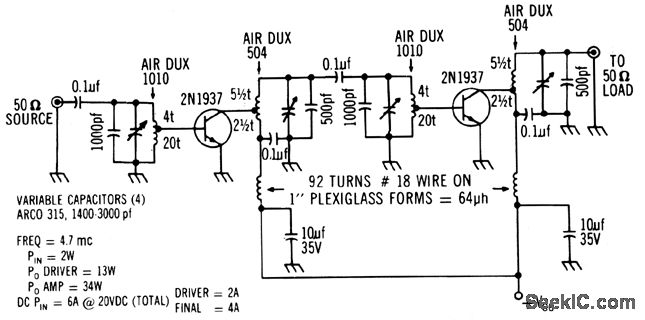

Common-emiller connection gives good power gain with collector-emitter voltage of 20 v,though gain varies with frequency.-Texas Instruments Inc., Solid.State Communications, McGraw-Hill, N.Y., 1966, p 316.
