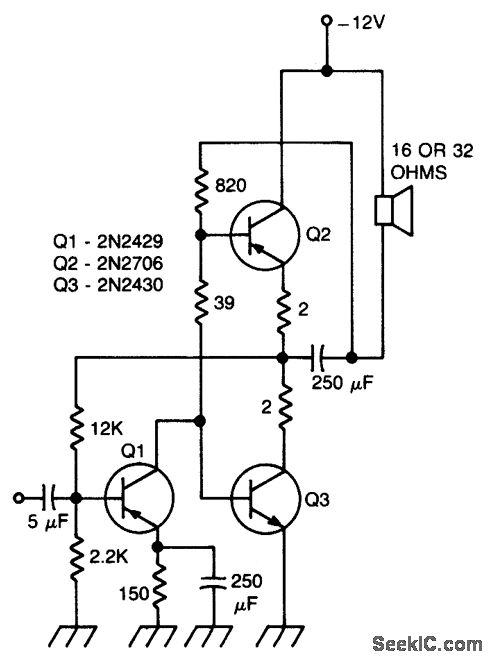

470_mW_COMPLEMENTARY_SYMMETRY_AUDIO_AMPLIFIER

Published:2009/6/24 3:10:00 Author:May | From:SeekIC

This circuit has less than 2% distortion and is flat within 3 dB from 15 Hz to 130 kHz.
