46_dB_GAlN

Published:2009/6/28 23:43:00 Author:May | From:SeekIC

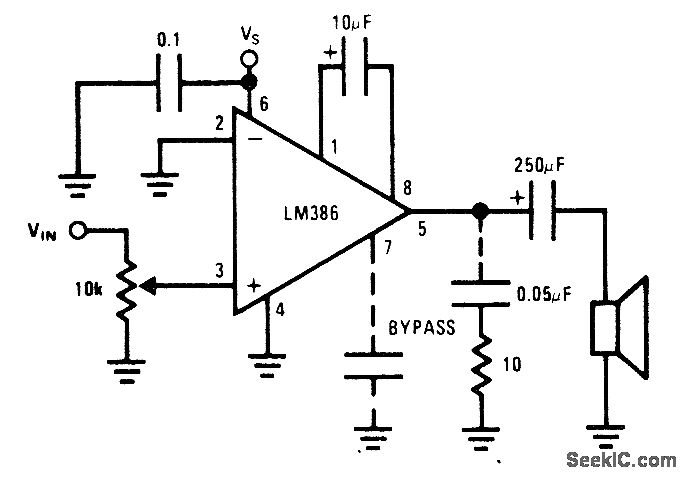

Single National LM386 power amplifier provides gain of 200 V/V at maximum output power of 250 mW for 12-V supply. Op-tional 0.05-μF capachor and 10-ohm resistor suppress bottomside oscillation occurring during negative swing into Ioad drawing high current.- Audio Handbook, National Semicon-ductor, Santa Clara, CA, 1977, p 4-30-4-33.
