45_watt_AF_power_amplifier_for_radio_and_TV

Published:2009/7/20 3:35:00 Author:Jessie | From:SeekIC

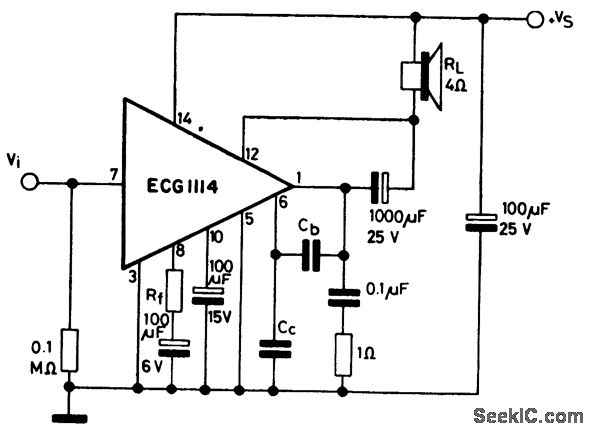

4.5-watt AF power amplifier for radio and TV. Recommended supply voltage is 14 volts. Current drain at maximum power output is 485 mA. Typical voltage gain is 46 dB. Input impedance is 3M (courtesy GTE Sylvania Incorporated).
