450_MHz_COMMON_GATE_AMPLIFIER

Published:2009/7/9 22:52:00 Author:May | From:SeekIC

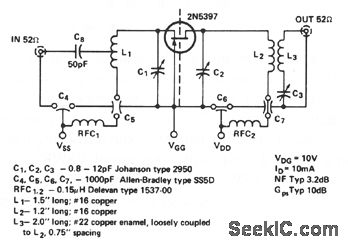

This is a low nolse,3-dB typical NF,amplifier with about 10-dB gain at 450-470 MHz for VHF two-way applications.
