440__to_480_MHz_broadband_UHF_amplifier_125_V_supply

Published:2009/7/24 2:54:00 Author:Jessie | From:SeekIC

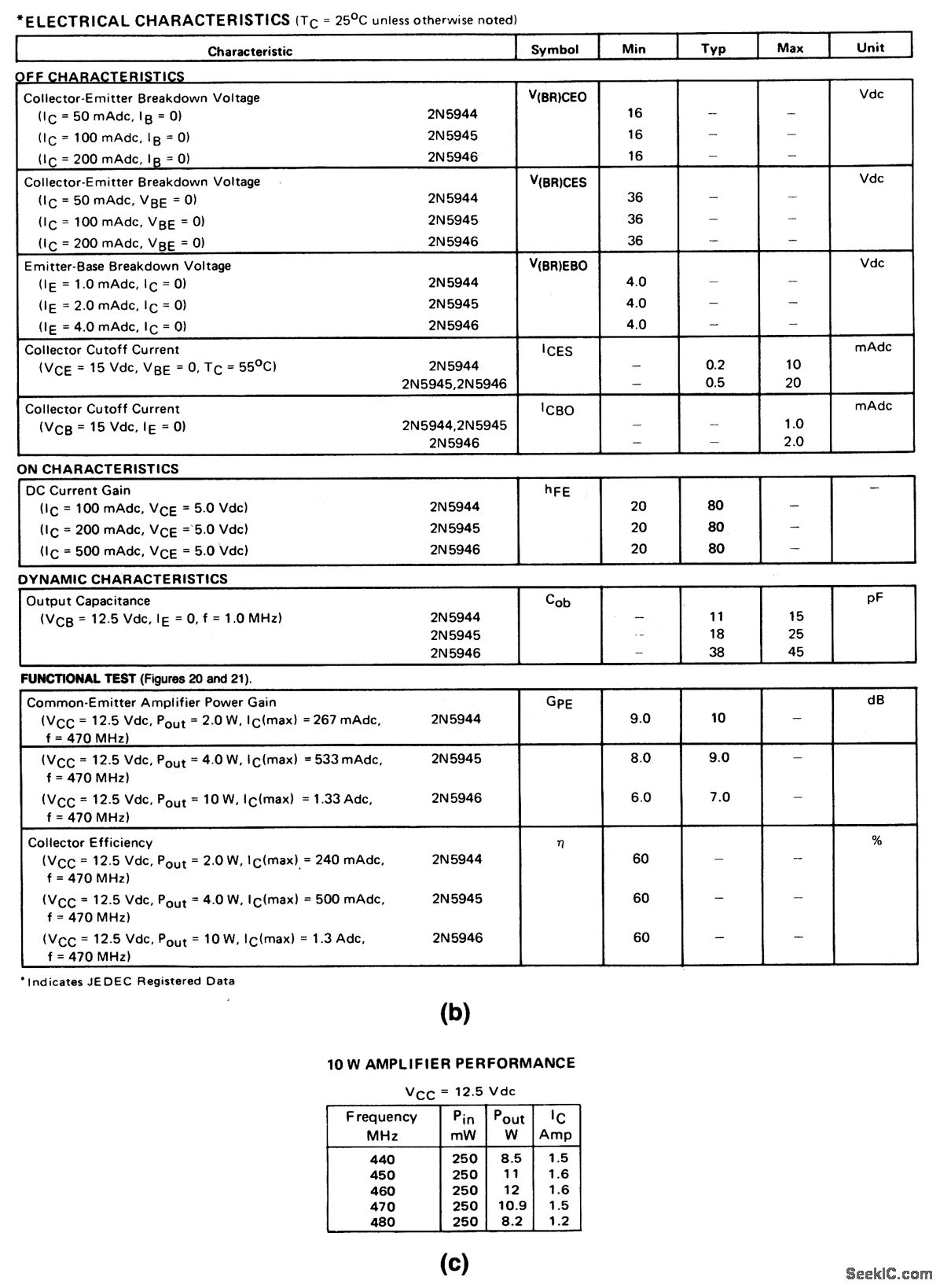

The electrical characteristics for the 2N5944 and 2N5946 shown in this circuit are given in Fig. 2-33B. Figures 2-33C and 2-33D show the amplifier performance over the frequency range. Figures 2-33E and 2-33F show the PC-board photomaster, and parts placement, respectively. Those not familiar with microstrip techniques (for Z1, Z2, and Z3) should read the many Motorola Publications, such as AN548A and AN555.
