40_W_AMPLIFIER

Published:2009/6/15 21:30:00 Author:May | From:SeekIC

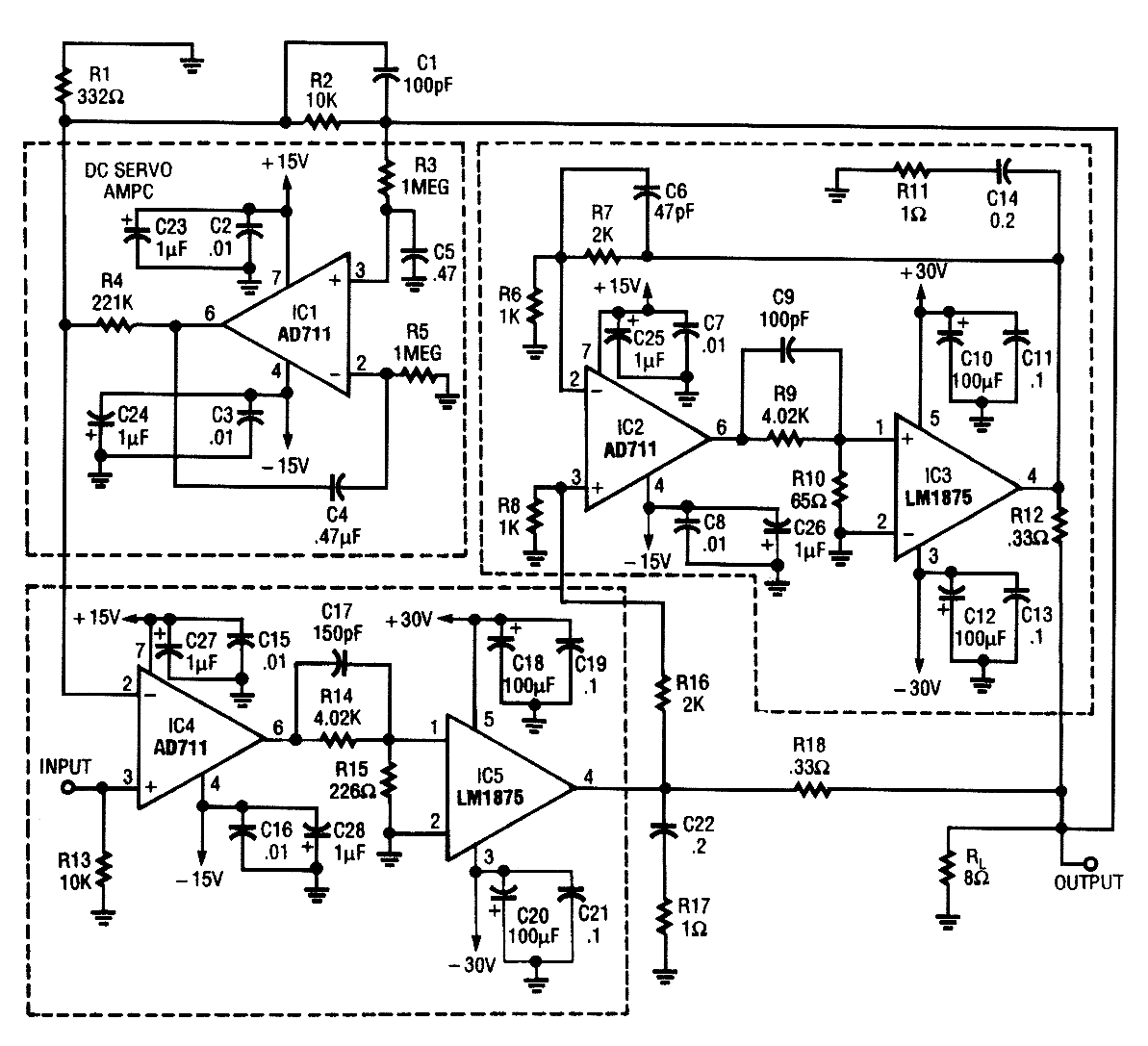

This circuit uses two LM1875 devices and a dc servo loop. This circuit provides 40-W output. IC3 and IC5 must be heatsinked.
