40_METER_35_W_AMPLIFIER

Published:2009/7/14 4:10:00 Author:May | From:SeekIC

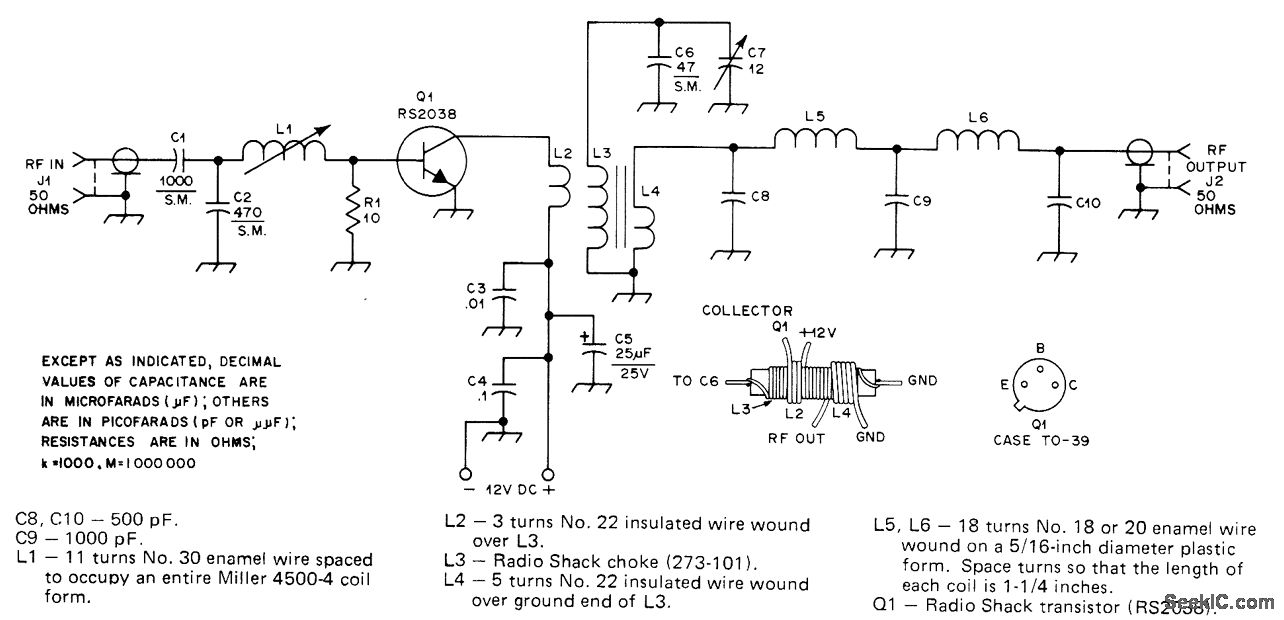

Designed for use with low－power（QRP）transmitter when band conditions are poor. Requires about 350-mW input. Half-wave filter at output keeps harmonics low Use heatsink for Q1．-T Mula, Codzila 1, QST, Feb. 1977, p14 – 15.
