400_MHz_125_W_push_pull_amplifier

Published:2009/7/24 3:18:00 Author:Jessie | From:SeekIC

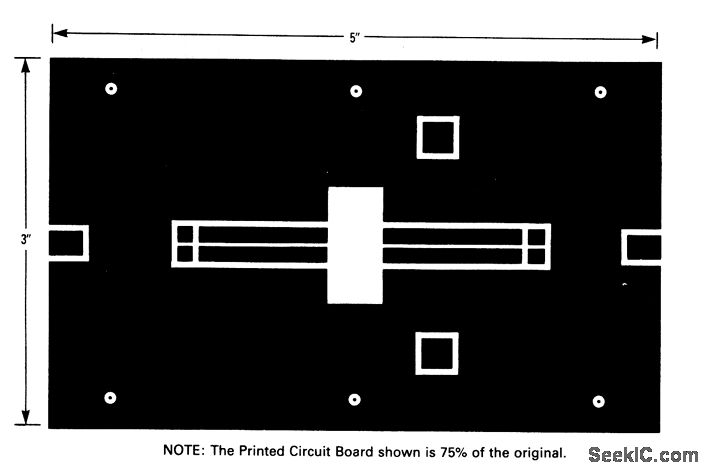

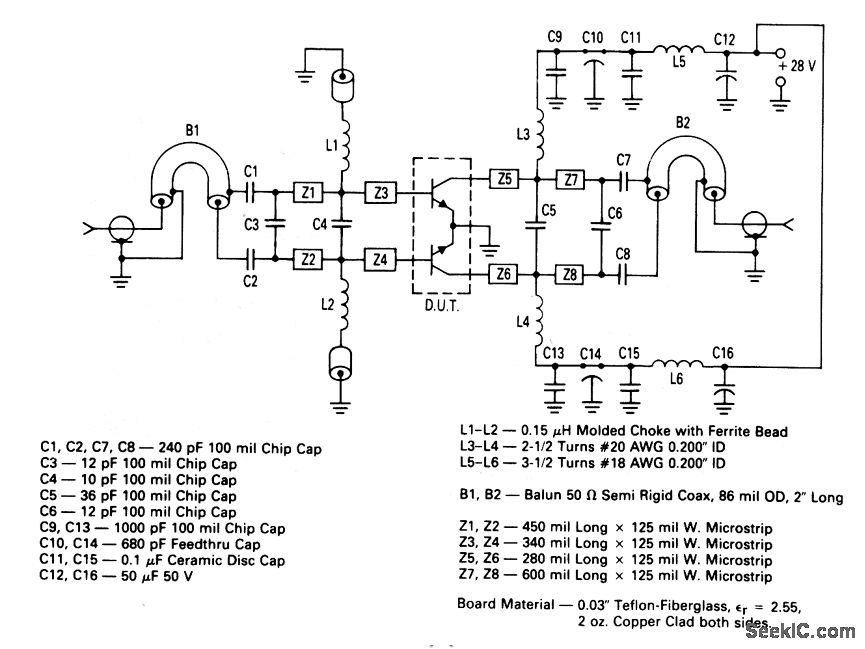

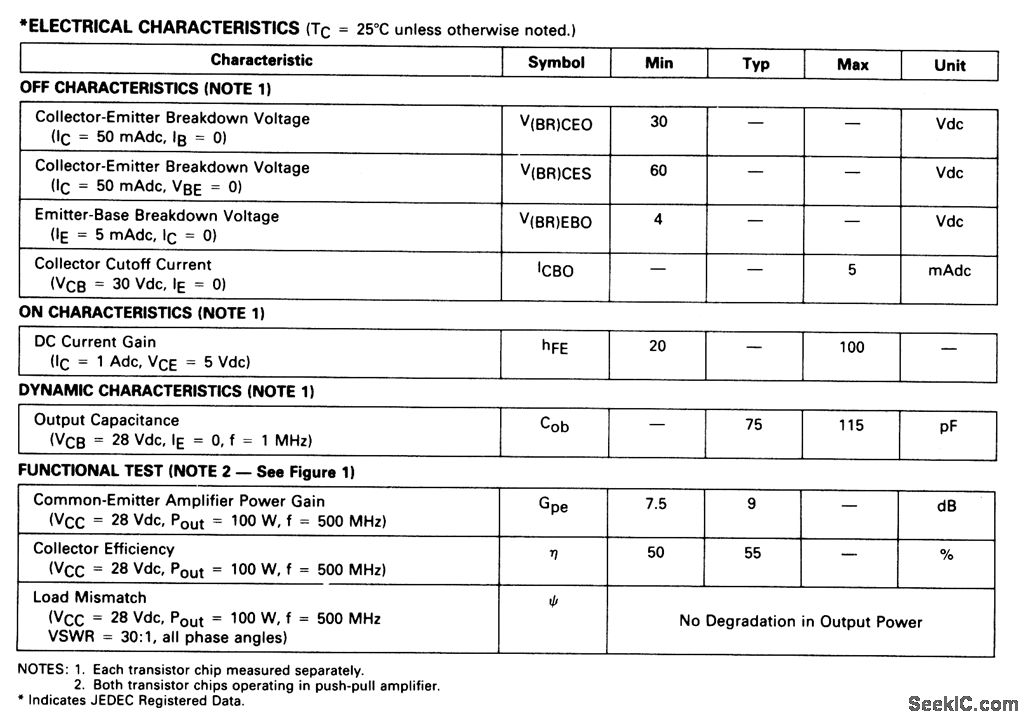

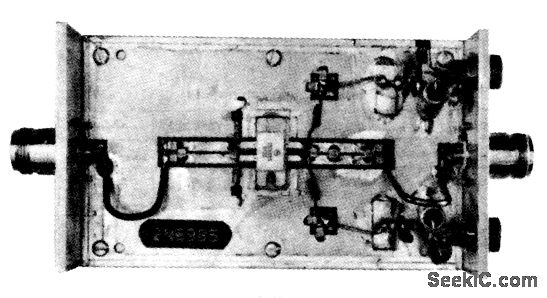

The electrical characteristics for the 2N6985 (push-pull transistor ) shown in this circuit are given in Fig .2-41B. Figures 2-41C and 2-41D show the photomaster ,and parts location , respctively, Those not familiar with microstrip techniques (for Z1 through Z5) should read the many Motorola publications, such as AN548A and AN555.
