400_Hz_AMPLIFIER_WITH_95_dB_CMRR

Published:2009/7/9 21:36:00 Author:May | From:SeekIC

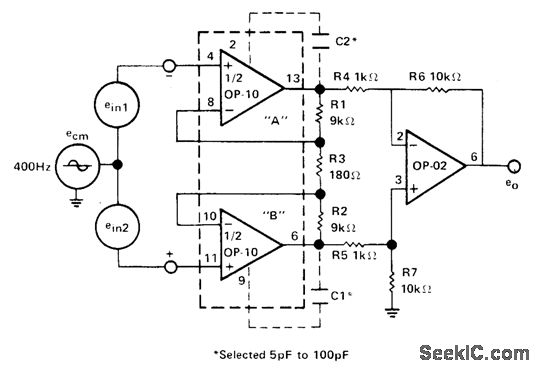

Precision Monolithics OP-10 dual opamp driving 0P-02 opamp gives high common-mode rejection ratio. CMRR is optimized by selecting C1 and C2 in range of 5 to 100 pF for minimum output e0 as viewed on CRO whilefeeding±10 V signal at 400 Hz to common connection of inputs．－''Linear ＆Conversion I.C.Products,''Precision Monolithics,Santa Clara,CA,1977－1978,p 15-2.
