3_W_PULSE_AMPLIFIER

Published:2009/7/6 6:43:00 Author:May | From:SeekIC

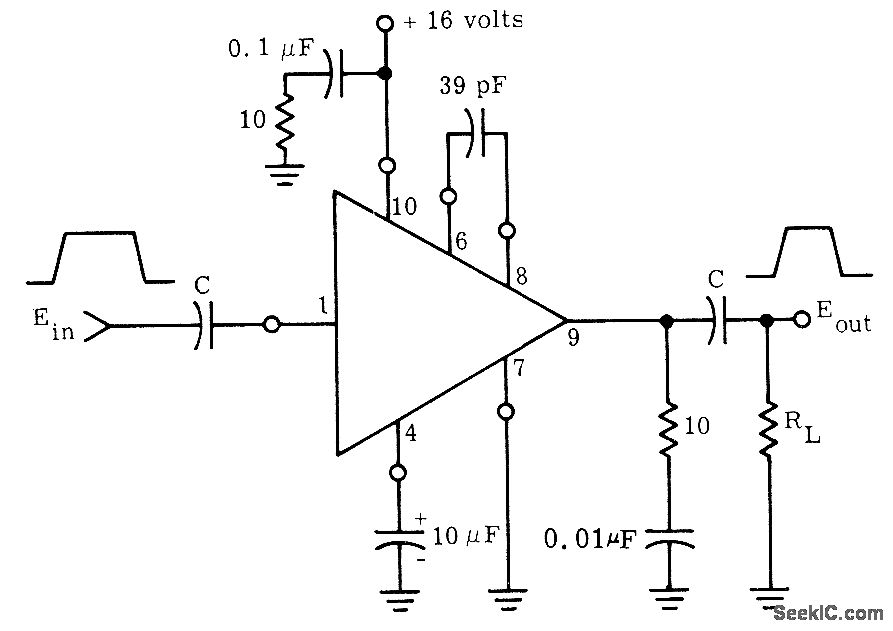

Motorola MC1554 power amplifier provides voltage gain of 18 for peak pulse power output up to 3 W Maximum peak output current rating of 500 mA for IC should not be exceeded during peak of output pulse.- The MC1554 One-Watt Monolithic Integrated Circuit Power Amplifier, Motorola, Phoenix, AZ, 1972, AN-401, p 3.
