3_W_DIFFERENTIAL

Published:2009/6/29 2:14:00 Author:May | From:SeekIC

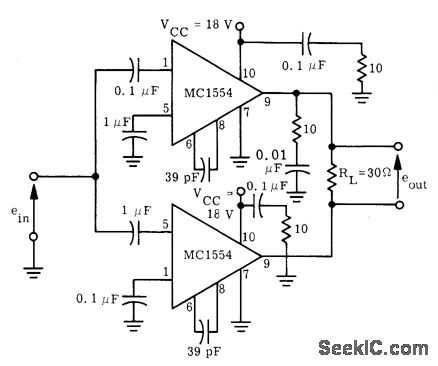

Upper Motorola MC1554 power amplifier is connected in standard configuration for noninverting gain of 9, while lower IC has inverting gain of 9 to give effective overall voltage gain of 18. Input impedance of upper amplifier is 10K while that of lower amplifier is 1K, with unequal input coupling capacitors providing required match of frequency responses. Differential output connection allows output voltage swing to exceed powersupply voltage.- The MC1554 One-Watt Monolithic Integrated Circuit Power Amplifier, Motorola, Phoenix, AZ, 1972, AN-401 p 4
