33_watt_AF_power_amplifier_using_an_ECG1118

Published:2009/7/20 3:56:00 Author:Jessie | From:SeekIC

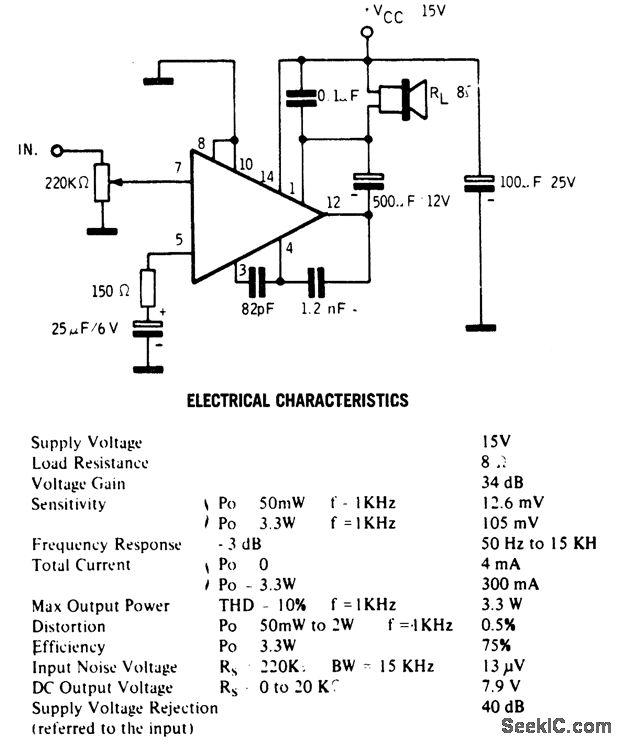

3.3-watt AF power amplifier using an ECG1118. This circuit is intended for phonograph applications (courtesy GTE Sylvania Incorporated).
