30 kHs bandwidth isolation circuit

Published:2011/6/8 7:36:00 Author:chopper | Keyword: 30 kHs bandwidth, isolation | From:SeekIC

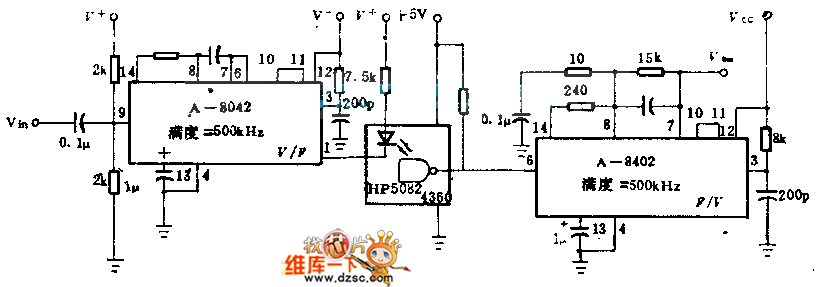

This circuit uses A-8402V/F convertor whose linearity is ±0.05%,the greatest inversion frequency can reach 500KHZ,and the convertor can drive the LED of optoelectronic isolator.Another A-8402V/F module is used to convert the output of optoelectronic isolator into DC voltage accordingly.The power source is 12V ,and 5~18V is ok.
