30_MHz_video_amplifier_using_an_MC1552G

Published:2009/7/17 4:44:00 Author:Jessie | From:SeekIC

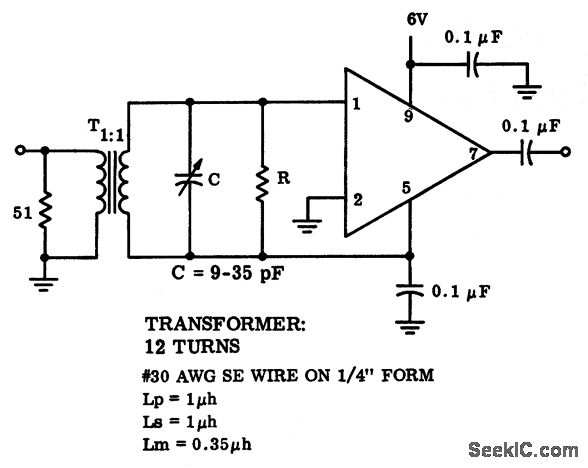

30 MHz video amplifier using an MC1552G.Set R to 1 K for a voltage gain of 55(courtesy Motorola semiconductor Products Inc.).
