30_MHz_AMPLIFIER

Published:2009/6/18 1:40:00 Author:May | From:SeekIC

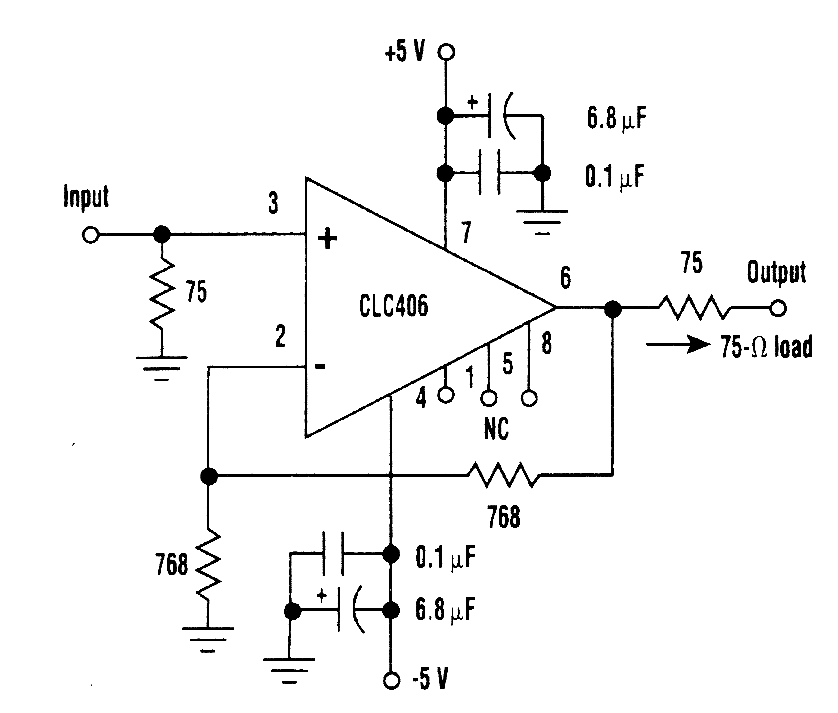

Using a CLC406 op amp, this video amplifier has a voltage gain of +2 and is flat to 30 MHz. The circuit should be useable in video switching and interfacing applications.
