30_MC_LINEAR_SINGLE_SIDEBAND_AMPLIFIER

Published:2009/7/10 1:31:00 Author:May | From:SeekIC

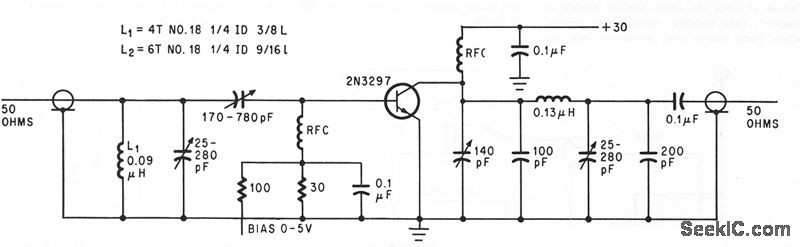

Single silicon transistor with impedance matching network and pi output network delivers 20 w of r-f peak envelope power, with all odd-order distortion products at least 30 db down.-R. C. Heihall, Getting Transistors Into Single,Sideband Amplilers, Elecrronics, 37:17, p 72-75.
