30_MC_I_F_USING_2N2188

Published:2009/7/16 2:39:00 Author:Jessie | From:SeekIC

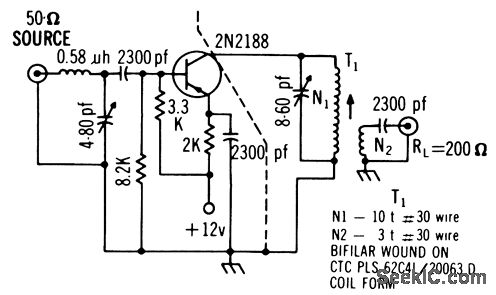

Circuit includes L-section to give generator resistance of 350 ohms from 50-ohm source. Power gain is13 db, noise figure 4 db, and bandwidth 5 Mc.-Texas Instruments Inc., Solid-State Communications, McGraw-Hill, N.Y., 1966, p 309.
