30_MC_I_F_STRIP

Published:2009/7/16 2:48:00 Author:Jessie | From:SeekIC

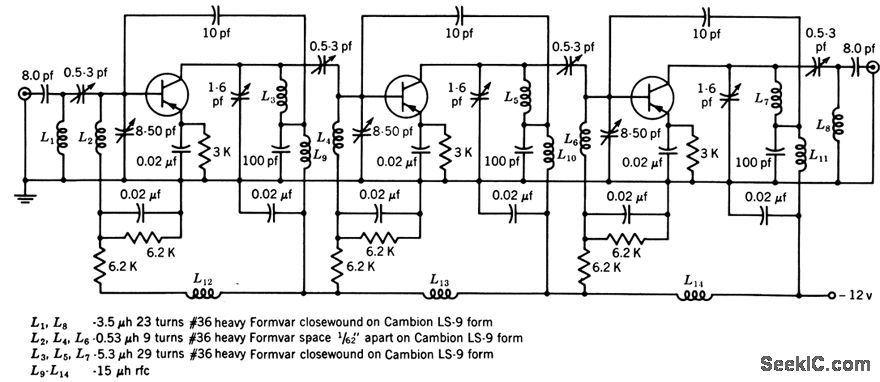

Gain is 70 db for 3-Mc bandwidth, using 2N1405 transistors. Design equations are given.-Texas Instruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y., 1963, p 276.
