30W Stereo power amplifier based TDA 1521

Published:2013/3/12 1:32:00 Author:Ecco | Keyword: 30W , Stereo power amplifier | From:SeekIC

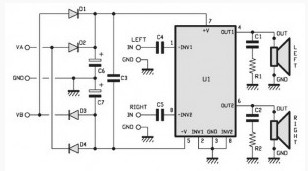

It is smallandcompactstereoamplifierispowerfulbutcan easily be usedtoreplaceyourbrokenamplifier ornew construction,ortomakean activespeaker,in all casescombined with a preamplifier. Withremarkable featuresmakeitthe trueHi-Fiamplifier. Usingonlyactivecomponent(the right andleft channel)PhilipsTDA1521monolithic integratedcircuit,whichcontains adoubleline-endaudioamplifier completely independent,each capable ofprovidingfrom10 to12 Wtothe load8 ohmor15 Winto 4ohms(30Wmusic). Voltagegainsof theamplifierisfixedat 30dB.
