300_W_FM_88__to_108_MHz_power_amplifier

Published:2009/7/23 23:11:00 Author:Jessie | From:SeekIC

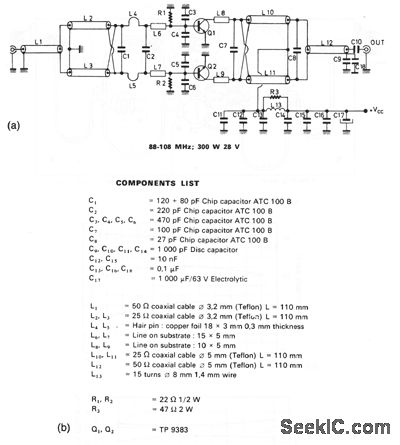

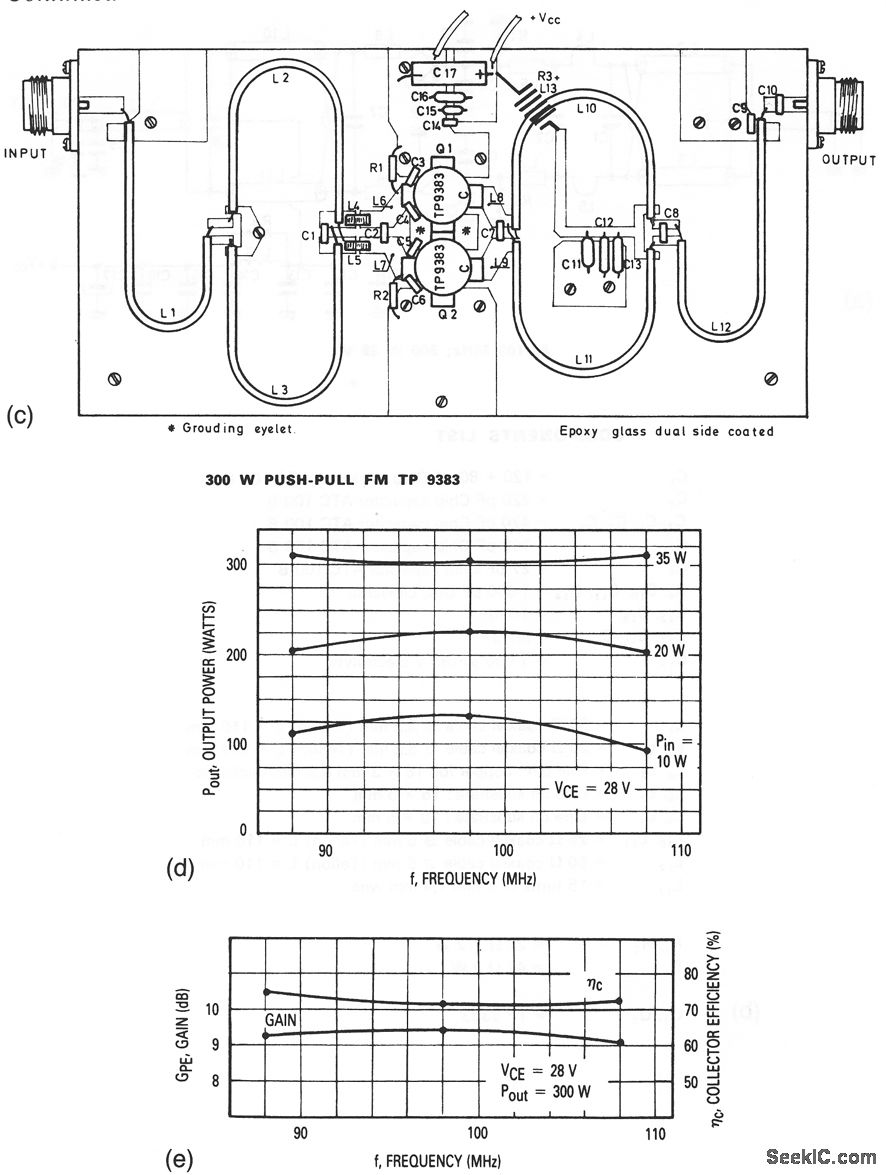

This circuit has a galn of about 9 dB over the frequency range.Thecomponents list,component layout,output power Versus input power and frequency, and gain are shown in Figs. 2-57B, 2-57C, 2-57D, and 2-57E, respectively. The actual layout dimensions are: 4.25 × 2.25 .
