2_watt_OTL_audio_power_amplifier_using_an_ECG1034

Published:2009/7/20 2:49:00 Author:Jessie | From:SeekIC

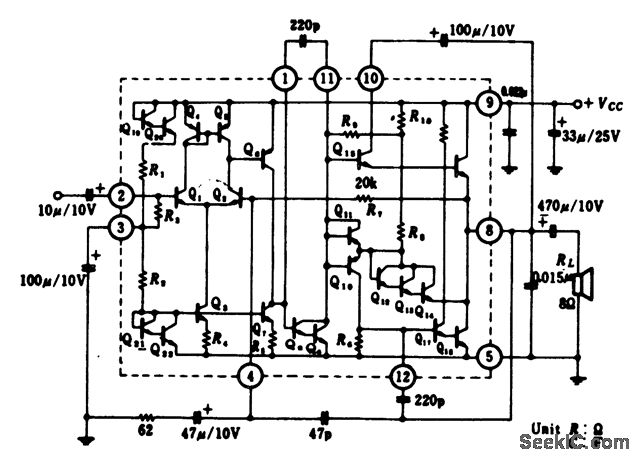

2-watt OTL audio power amplifier using an ECG1034. Recommended supply voltage is 12 volts. Typical voltage gain at 1 kHz is 50 dB. Input impedance is 20K. Frequency response is from 60 hertz to 50 kilohertz (courtesy GTE Sylvania Incorporated).
