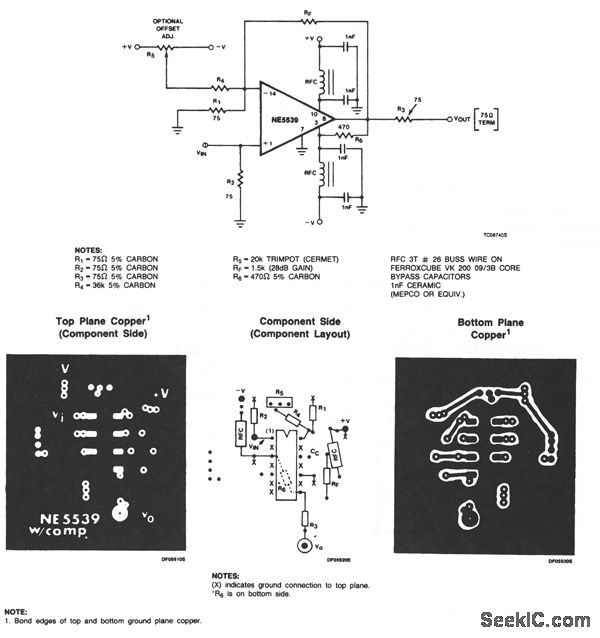

28_dB_NONINVERTING_AMPLIFIER

Published:2009/7/7 7:42:00 Author:May | From:SeekIC

The physical circuit layout is extremely critical. Breadboarding is not recommended. A double-sided copper-clad printed circuit board will result in more favorable system operation.
