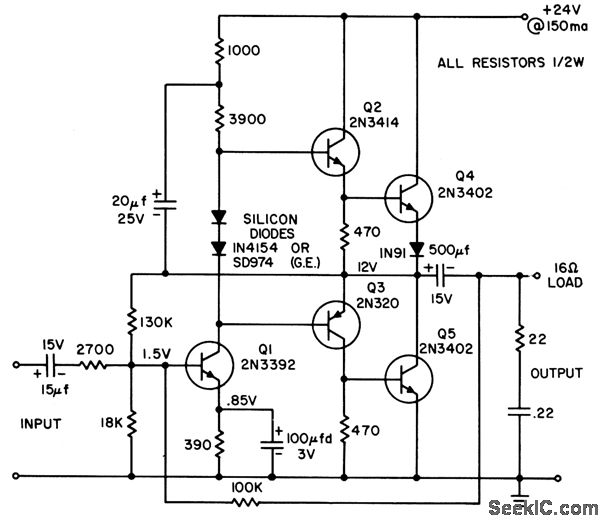

25_W_TRANSFORMERLESS_AMPLIFIER

Published:2009/7/14 23:08:00 Author:Jessie | From:SeekIC

Uses economical transistors and diodes. Requires 330 mv input for full output. Total harmonic distortion at 1 kc is less than 1% at fulloutput.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 266.
