250_mW_babysitter_intercom_using_an_LM3909_chip

Published:2009/7/20 5:10:00 Author:Jessie | From:SeekIC

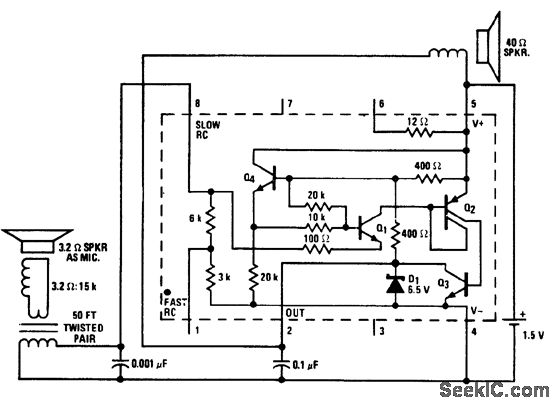

250 mW babysitter intercom using an LM3909 chip. Circuitry inside dashed lines is the LM3909. Operating current is 12to 15mA (courtesy National Semiconductor Corporation).
