250_MC_12_W_POWER_AMPLIFIER

Published:2009/7/10 1:39:00 Author:May | From:SeekIC

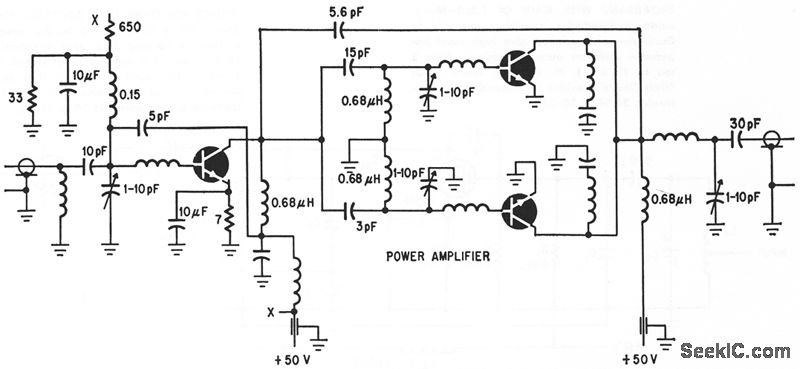

Commonemitter circuits operating class C serve for driver and parallel-connected power amplifier transistors.Total gain is 12 db.-N.Downs and B.van Sutphin, Solid-State Transmitter Ready for UHF Telemetry,Electronics,37:17,p 76-80.
