225_MHz_13_W_AMPLIFIER_

Published:2009/7/4 20:45:00 Author:May | From:SeekIC

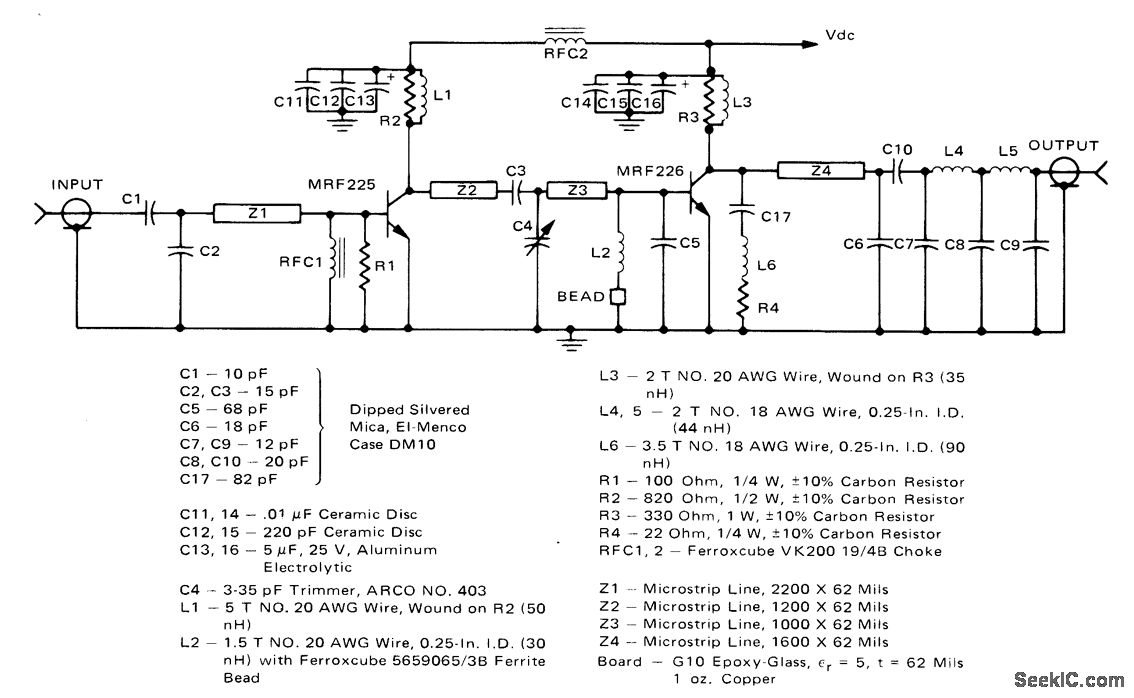

Suitable for use in FM transmitters for 220-225 MHz amateur radio bandBandwidth is about 10 MHz for ±0.5 dB Low-pass filter provides about 60-dB attenuation of second harmonic. Microstrip matching network simplifies construction. Supply 13-Watt Microstdp Amplifier for 220-225 MHz FM tranBandwidth is about 10 MHz for t0.5smitters for 220-225 MHz amateur ing network simplifies construction. Supply voltage is 12.5 V.-J. Hatchett and T. Sallet ''13-Watt Microstdp Amplifier for 220-225 MHz Operation, , Motorola, Phoenix, AZ, 1975, AN728, p 3.
