20_watt_single_ended_AF_power_amplifier

Published:2009/7/20 4:08:00 Author:Jessie | From:SeekIC

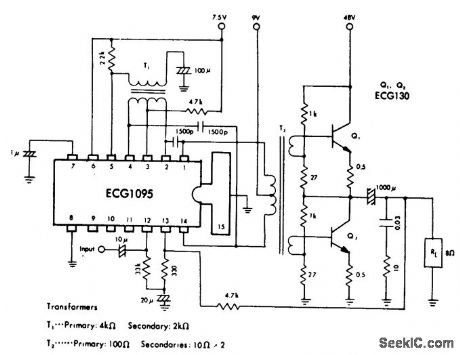

20-watt single-ended AF power amplifier. The ECG1095 is a 14-pin DIP with a tab and built-in AGC. The two output transistors are ECG130 bipolars (courtesy GTE Sylvania Incorporated).
