20_dB_amplifier

Published:2009/7/17 4:00:00 Author:Jessie | From:SeekIC

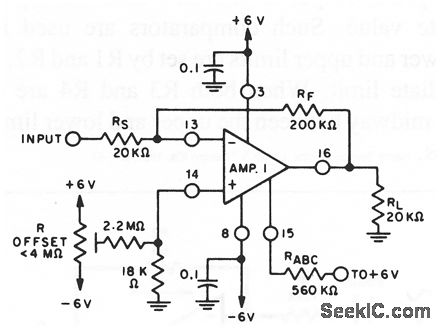

This circuit uses one section of a CA3060 OTA to form a 20-dB amplifier with a typical 20-kHz bandwidth．Notice that the bias input is connected to a fixed＋6V．
