20_dB_VIDEO_LINE_DRIVER

Published:2009/6/25 21:50:00 Author:Jessie | From:SeekIC

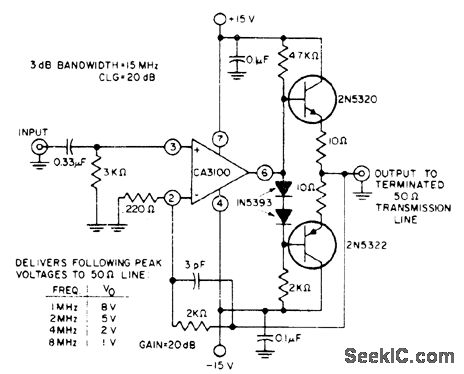

RCA CA3100 wideband opamp and power transistor output stage together provide gain of 20 dB at video frequencies for driving 50-ohm line. Peak output voltage ranges from 8V at 1MHz to 1V at 8MHz Upper frequency limit for unity galn is about 38MHz．- Linear Integrated Circuits and MOS/FET's、″RCA Solid State Division,Somerville,NJ,1977,p 225-227
