200_MHz_CASCODE_AMPLIFIER

Published:2009/6/29 4:15:00 Author:May | From:SeekIC

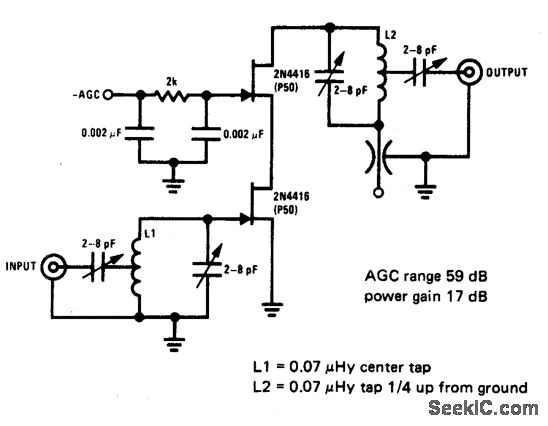

This 200 MHz JFET cascode circuit features low cross-modulation, large signal handling ability, no neutralization, and AGO controlled by biasing the upper cascade JFET. The only special requirement of this circuit is that bss of the upper unit must be greater than that of the lower unit.
